Multi (Multiple) Corers

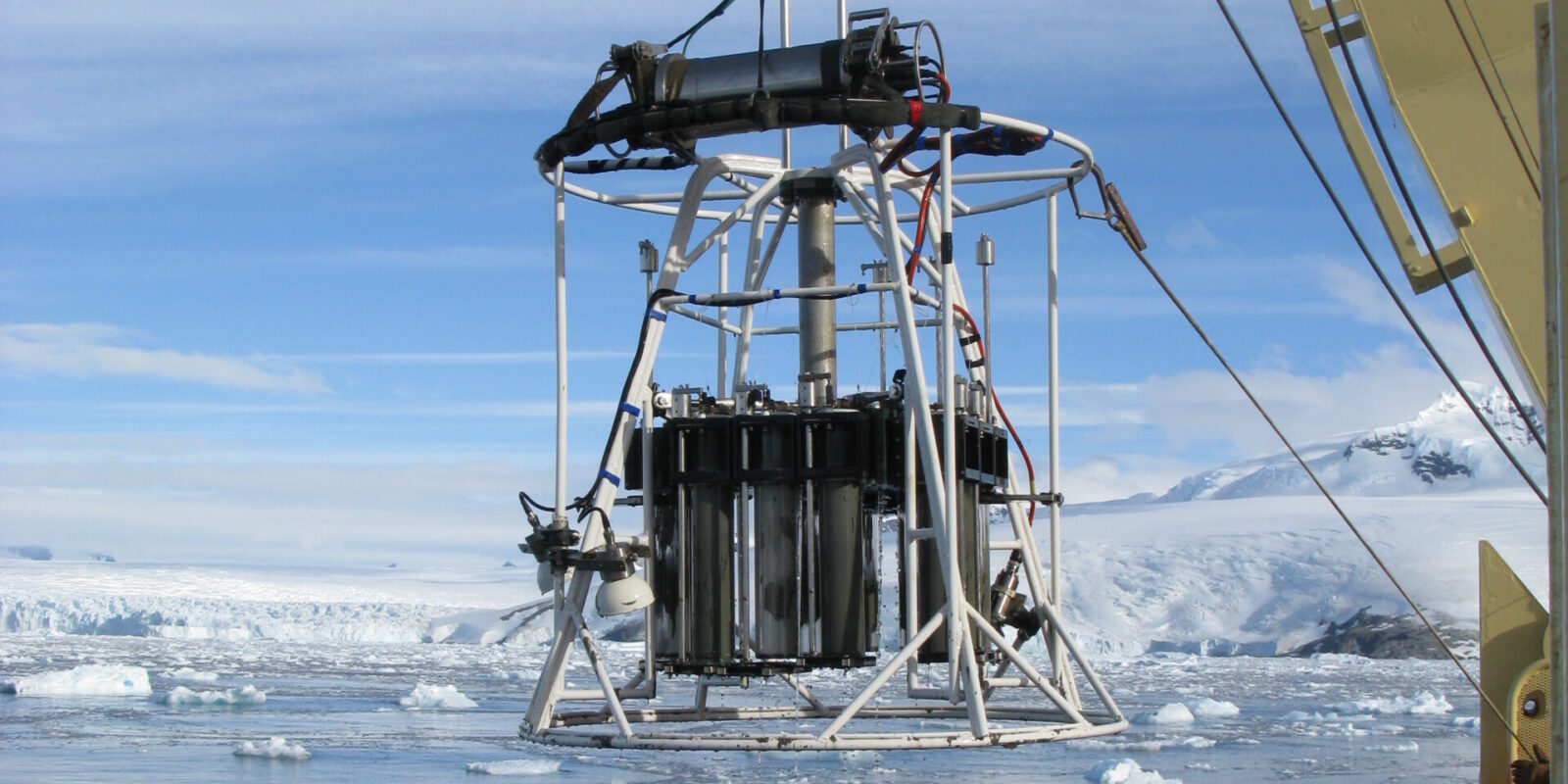

The OSIL range of Multi (Multiple) Corers combine the flexibility of four models (12 core Mega, 8 core Maxi, 4 core Midi & the smaller framed 4 core Mini Corer) with a suite of features for undisturbed sediment sampling. The Corers offer the ability to collect multiple high-quality undisturbed sediment samples which include the sediment /water interface and overlying supernatant water. This is achieved through the use of a unique hydrostatic damping system. This system slows the penetration rate down to approximately 1cm/s, and removes the typical bow wave seen with other corers.
Each of the four models, Mega, Maxi, Midi and Mini, are easy to operate, and provide a simple and reliable way of collecting the most accurate sample possible. In addition these corers benefit from detachable core holders, enabling the core tubes or, in certain instances the whole corer tube assembly, to be removed from the main body of the corer enabling a succession of samples to be taken during any one mission. The core tubes are sealed top and bottom, allowing rapid retrieval of the corer without jeopardizing the integrity of the samples.
The rugged frame of the corer is made of 316 stainless steel and the core tubing itself can be manufactured from acrylic, poly carbonate or stainless steel, depending on the requirements of the customer. With a deployment rate of approximately 1 metre per second on the descent coupled with a retrieval rate at winch speed the corers are ideal for rapid assessment work.
Applications
Environmental Impact Assessments
Geochemical analysis
Interstitial waters
Oil field cuttings piles
Biological survey
Features
Virtually undisturbed sampling of the sediment/water interface
Unique hydrostatic sealing mechanism
Detachable core holders
Simple deployment and operation
Hydraulically damped sampling
Rugged construction
Technical Specifications
Mega Corer
Maxi Corer
Midi Corer
Mini Corer
Core Tubes
12
8
4
4
Outer Diameter (mm)
110 or 65
110 or 65
110 or 65
65
Internal Diameter (mm)
100 or 59
100 or 59
100 or 59
59
Length (mm)
600
600
600
300
Max. Core Length (mm)
400
400
400
150
Corer Weight (kg)
735
700
665
88
