1.9m Metocean Buoy (Fulmar)

Category:

Description

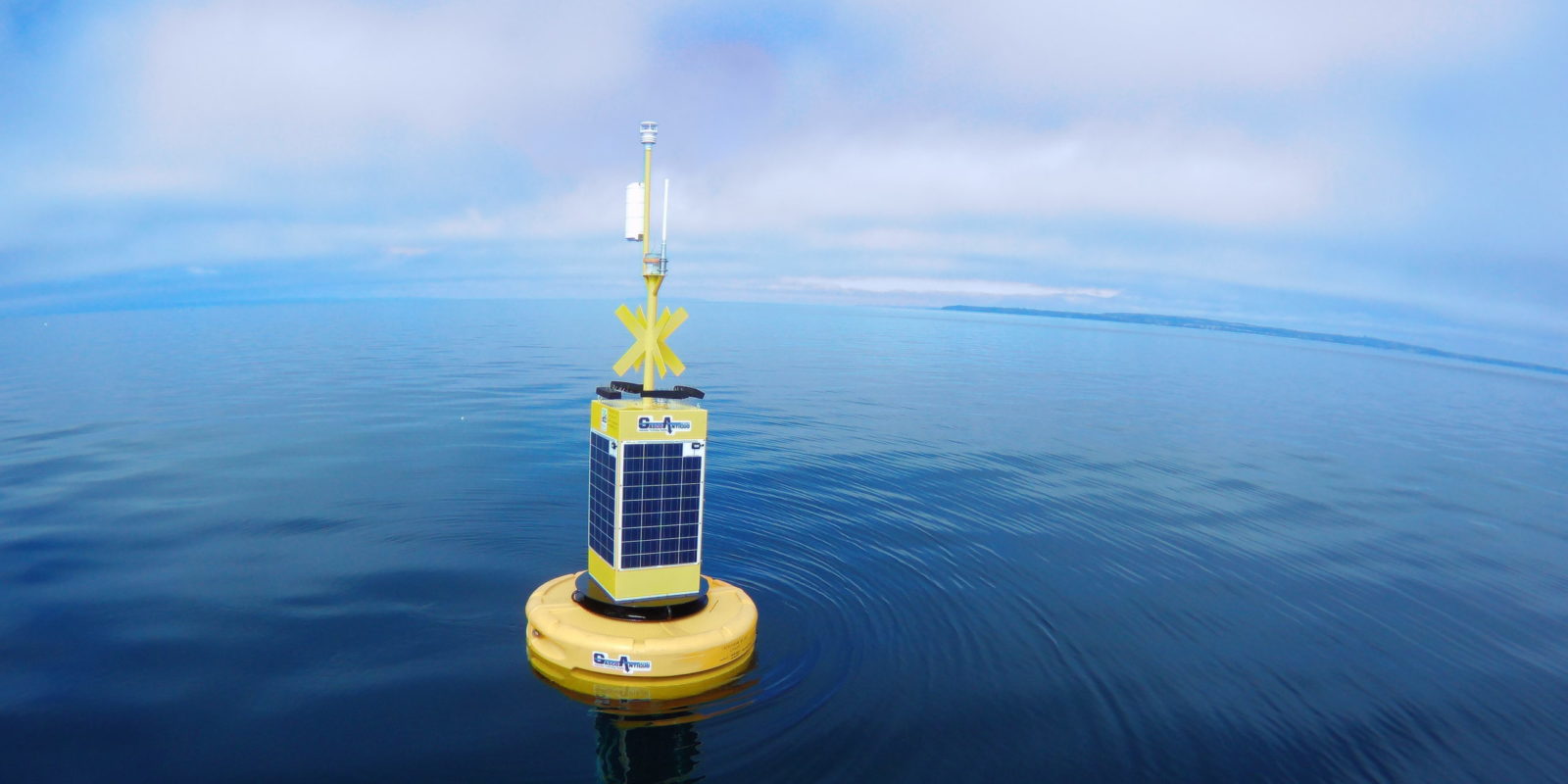

OSIL’s Fulmar Buoy is a versatile instrumentation platform ideally suited for collection and measurement of oceanographic, meteorological (metocean) and water quality data parameters in inshore coastal areas, as well as open water applications.

Instrumentation can be deployed anywhere from near surface to the seabed. The buoys can be moored in a fixed position with either single point, dual point or compliant mooring (where required).

The system is supplied with a range of sensors that can specified by the customer (including CTD, DO, pH/ORP, Turbidity, Chlorophyll, Rhodamine, current speed/direction, wind speed/direction, temperature, humidity, pressure, rainfall, and solar radiation as well as a GPS locator). All buoys are fitted with solar panels, navigation/warning lights and other markings as necessary. A range of telemetry options are available (UHF/VHF, GSM, GPRS, Satellite), selected to suit both the location and application requirements. OSIL provide a complete data telemetry solution, including either desk top or web-based software packages to access the data.

The buoys are 1.9 m in diameter, with a total buoyancy of 2000 kg, and have a reserve buoyancy of 1000 kg after fitting the equipment such as solar panels, battery packs and monitoring instrumentation, etc.

The OSIL range of buoys are manufactured using rotationally moulded polyethylene hulls, which are foam filled for added security. The hulls are constructed around a galvanised steel or welded polyethylene central structure, which has a large hole through the centre which allows the passage of instrumentation and cables from the tower down through the water column to the seabed. By utilising a ‘Moon Pool’, instrumentation in the centre of the buoy is well protected from damage during deployment and operation.

Features

Robust construction
Modular design making transportation easy and replacement of equipment simple
Through hull compartment for safe positioning of equipment
Interchangeable components
Highly stable in operation
Solar power systems available as self-contained modules or separate larger panels for higher power load
Range of towers available to suit the application
Mooring systems available for inshore waters and open sea locations

Applications

Offshore design and operations
Meteorological and climatological studies
Suitable for deepwater operations
Harbour monitoring
Coastal engineering
Scientific studies
Wave energy studies
Maritime traffic control
Water quality control studies

Technical Specifications

Diameter 1.9m

Reserve Buoyancy (after payload) 1000kg

Weight 960kg

Focal Plane 2.4m

Ballast Weight 240kg

Sensors

Met (Wind speed & direction, Temperature, Barometric Pressure, Humidity, Precipitation, Visibility, PAR)

Water Quality (CTD, DO, pH, Turbidity, Chlorophyll A, BGA, PCO2, TSS)

Oceanographic (Current speed & direction, Tides (subject to deployment conditions), Wave height & direction)

Additional sensors can be incorporated, please contact us for details.
