The Box Corers are simple and reliable corers for sampling an areas of 0.05m2 (Mini), 0.1m2 (Standard), 0.25m2 (Mega) or 0.5m2 (Giant) of sediment with minimal disturbance and sample contamination.

Its unique double shovel design allows easy access to the sediment for sub-sampling for subsequent scientific investigation.

The Corers are widely used for sampling in biological, chemical and geochemical applications as the relatively large block of sediment provides a large well preserved sample.

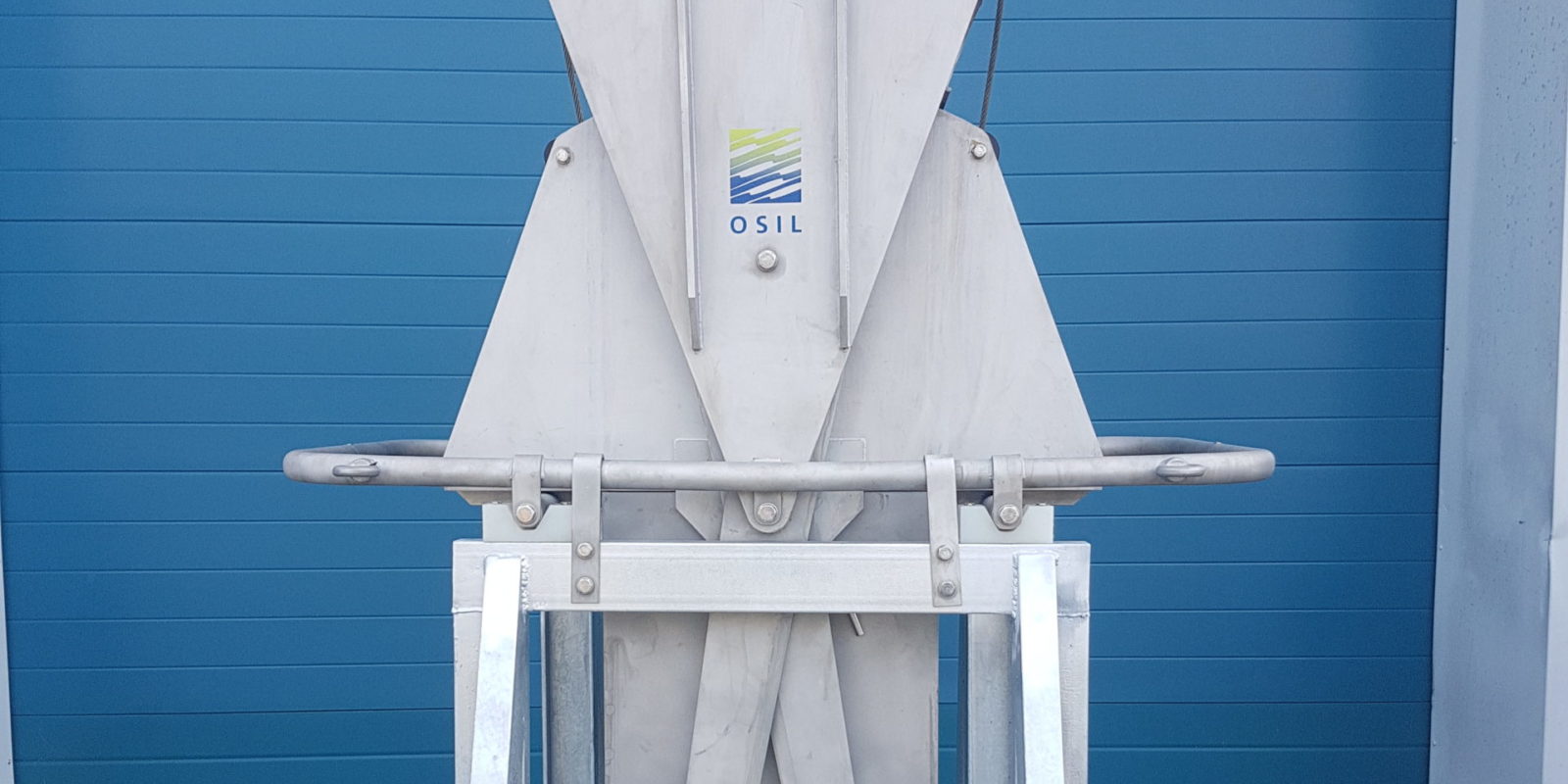

The Corers are easily deployed from a deck stand and can be lowered onto a standard lifeboat no-load release, which activates after sediment penetration. The box is closed, top and bottom, by two closely fitting shovels, mounted on pivot arms. Removable weights allow the corers to be used successfully in a range of sediment types.



  • Large box sample
  • Minimal contamination
  • Easy to use
  • Reliable operation
  • Rugged construction
  • Well proven design


  • Deep sea sediments
  • Biological studies
  • Geochemical analysis
  • Environmental monitoring
  • Interstitial waters
  • Environmental Impact Assessment

Technical Specifications - Giant Box Corer

  • Weight (kg) 848
  • Box Size (cm) 75 x 75 x 50
  • Material: Stainless Steel

Technical Specifications - Mega Box Corer

  • Weight (kg) 565
  • Box Size (cm) 50 x 50 x 65
  • Material: Stainless Steel

Technical Specifications - Standard Box Corer

  • Weight (kg) 420
  • Box Size (cm) 30 x 30 x 65
  • Material: Stainless Steel

Technical Specifications - Mini Box Corer

  • Weight (kg) 50
  • Box Size (cm) 20 x 20 x 40
  • Material: Marine Grade Aluminium
